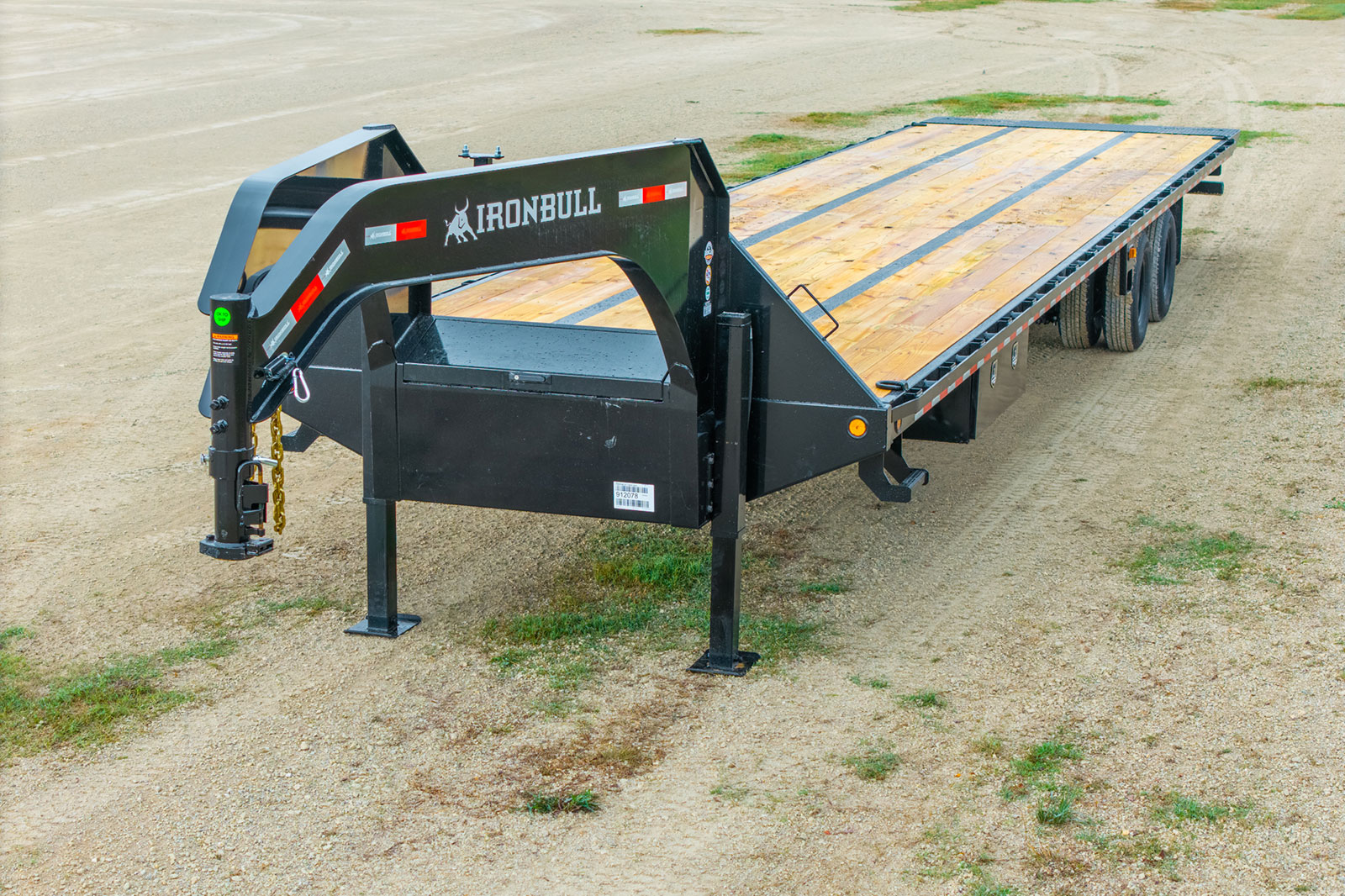

TDG Gooseneck Deckover Tilt Trailer angled view

No items found.

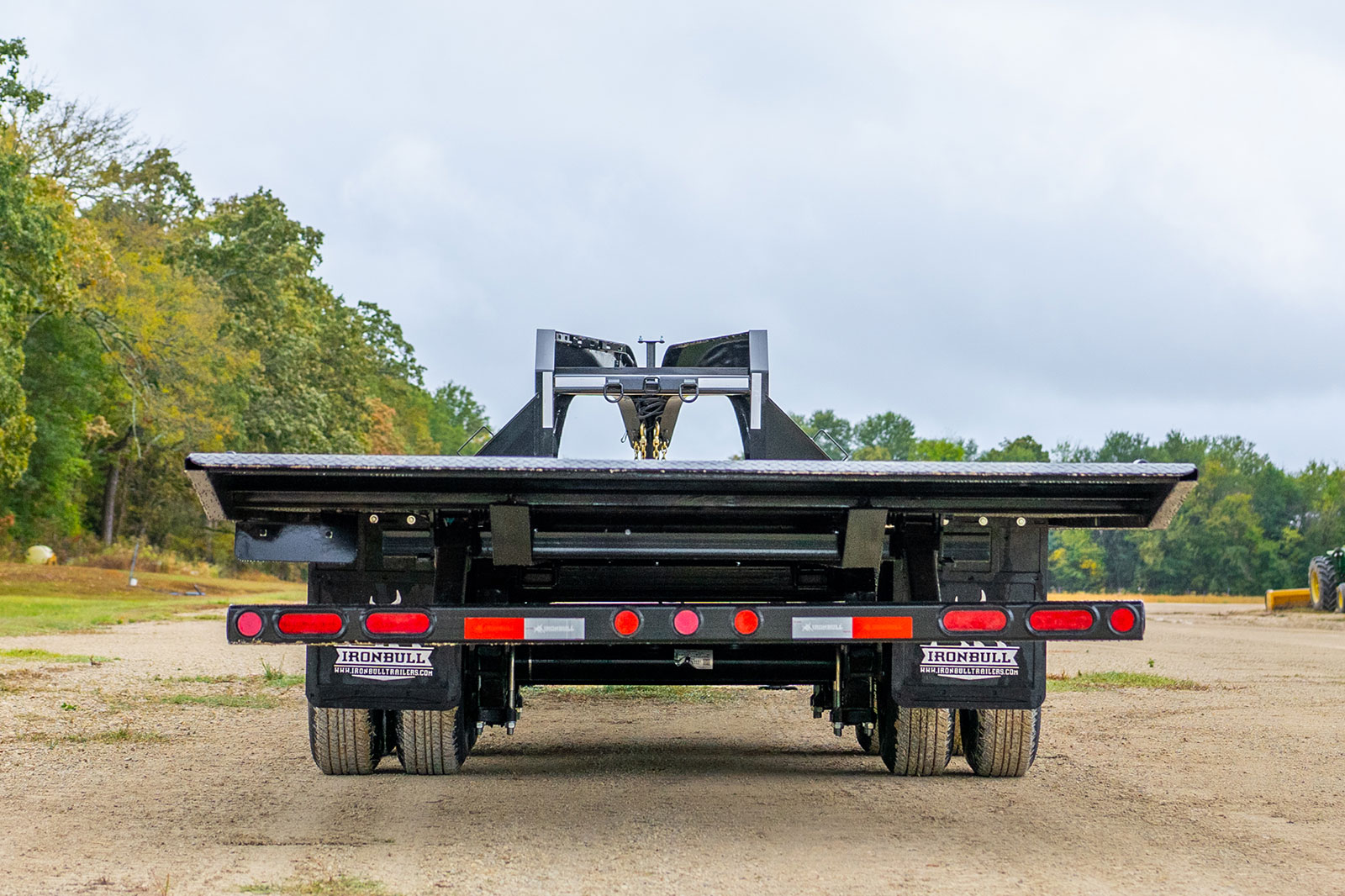

14K Tilt Deckover Gooseneck Trailer

LENGTH

22' - 40'

DECK HEIGHT

33"

Our 102" wide 14k Deckover Gooseneck Tilt is one rugged trailer. With two 7k axles and tons of standard features, this model will strongly perform for your hauling needs. It features a 10" I-Beam Neck and frame. It's loading angle of 14 degrees and 33'' deck height will help loading all types of equipment.

‍

REQUEST A QUOTE

add review

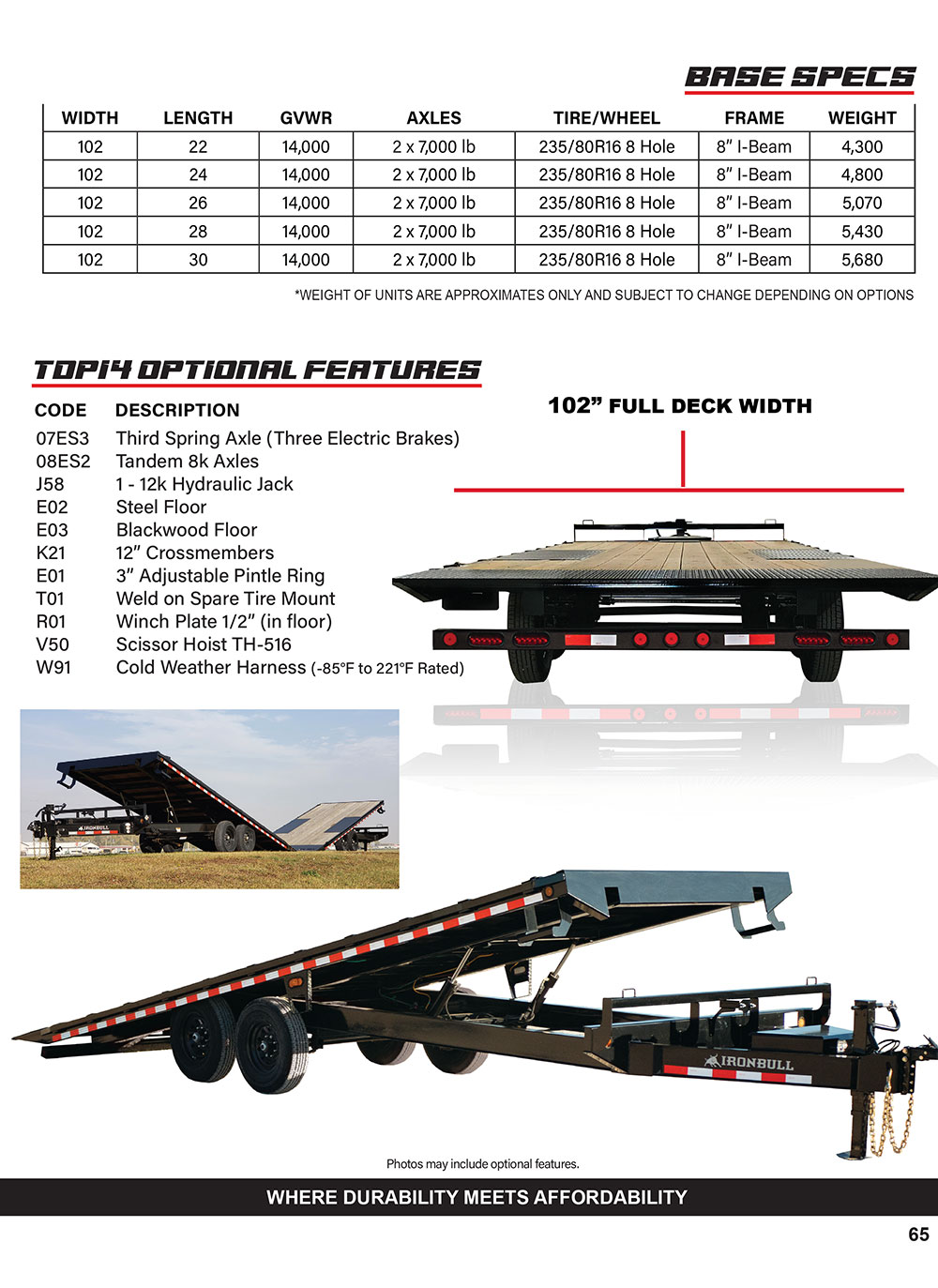

Specifications

LENGTH: 22'
GVWR: 14,000
AXLES: 2 x 7,000 lb
FRAME/NECK: 8" I-Beam

DECK HEIGHT: 33"

WEIGHT:

LENGTH: 24'
GVWR: 14,000
AXLES: 2 x 7,000 lb
FRAME/NECK: 8" I-Beam

DECK HEIGHT: 33"

WEIGHT:

‍

LENGTH: 26'
GVWR: 14,000
AXLES: 2 x 7,000 lb
FRAME/NECK: 8" I-Beam

DECK HEIGHT: 33"

WEIGHT:

‍

LENGTH: 28'
GVWR: 14,000
AXLES: 2 x 7,000 lb
FRAME/NECK: 8" I-Beam

DECK HEIGHT: 33"

WEIGHT:

‍

LENGTH: 30'
GVWR: 14,000
AXLES: 2 x 7,000 lb
FRAME/NECK: 8" I-Beam

DECK HEIGHT: 33"

WEIGHT:

‍

*Weight of units are approximates only and subject to change depending on options.

Standard Features

I-Beam Frame (10 lbs/ft)

Adjustable Coupler

Formed 3 x 3/16 Channel Cross Members

Double Channel Deck Frame Runners

Rub Rail, Stake Pockets & Pipe Spools

Cambered Spring Axles

Multi-leaf Slipper Spring Suspension

E-Z Lube Hubs

2 Electric Brake Axles

10k Drop Leg Jack

2''X8'' Treated Pine Floor

4 Standard D-Rings

Radial Tires

Black Wheels

Lifetime LED Lighting

All Lighting DOT Approved

Molded Sealed Harness with Resistors

7 Way Receiver Female Plug with Adapter

Powder Coat

‍

options

Third Spring Axle (Three Brake Axles)

Tandem 8k Axles

14-Ply 235/85 Tire Upgrade

3" Adjustable Pintle Ring

Steel Floor

Rough Oak Flooring

12" Crossmembers

2-10K Jacks

Additional D-Rings

Spare Tire

Weld On Spare Tire Mount

Winch Plate 1/2"

Cold Weather Harness: -85°F to 221°F (Standard harness: -40°F to 158°F)

Blackwood Floor

Scissor Hoist TH-516

Side Mount Tool Box On Both Sides

bed size guide

Download Truck Bed size guide

Use this guide when ordering your Norstar truck bed. Please observe the measurements of each dimension and check before placing your order.

Length: Measurement from cab to end of frame.
Width: Measurement from outside of tire to outside of tire
CTA: Measurement from cab to axle
Runner: Measurement from outside of frame to outside of frame at the rear of the frame.
Models: ST, SF, SR, SD
Order Method: Model x Length x Width x CTA x Runner
Example: ST 9’4”L x 97”W x 60”CTA x 34” Runners (Add options) Note: 11’ long beds will have 84” CTA

‍

Options gallery

Accessories/misc

Toolboxes

Ratchets

Sides

Jacks

Dove Tails & Ramps

Hydraulic Dove Options

Flooring

Accessories/misc

U52 - half inch winch plate in gooseneck

this optional feature adds a winch plate into the gooseneck of your trailer for a winch to be mounted on.

Accessories/misc

U50 - half inch winch plate in floor

this optional feature adds a winch plate into the floor of your trailer for a winch to be mounted on.

Accessories/misc

W91 - Cold Weather Harness

the cold weather harness helps keep your trailer safely operating in wintery or cold eviroments.

Flooring

E03 - Blackwood Flooring

Blackwood flooring by the foot, combines lasting durability with enhanced traction for safer, easier loading.

Flooring

E02 - Steel Flooring

Adds a durable steel floor by the foot, delivering superior strength and long-lasting performance for heavy-duty use.

Toolboxes

T41 - Two Additional Toolboxes

Adds two extra toolboxes to your deckover trailer, providing convenient storage and easy access for tools and equipment.

Accessories/misc

C56 - 30K Coupler Upgrade

this upgrades your trailer with a 30,000 Ib coupler, providing enhanced strength and secure towing for heavy-duty loads.

Accessories/misc

R93 - Wireless Remote (Four Buttons)

A four-button wireless remote, offering full, convenient control over your trailer's electric functions for ease and efficiency.

Accessories/misc

N02/N03 Extra D-Rings

Additional D-rings can be added for extra support, providing maximum tie-down options for safely securing equipment and cargo.

Accessories/misc

R06 - 6" Raised Gooseneck

A 6-inch raised gooseneck, improving clearance and providing a better towing angle for easier loading and transport. Perfect for trucks with a large lift.

Jacks

J57/J58 - 2k Hydraulic Jacks (if hydraulics equipped)

Available either as a stand alone or set of, these jacks provide dependable lifting power and safe operation of your trailer.

Jacks

J52/J56 - 12k Hydraulic Jack (if hydraulics NOT equipped)

Available in either a single or set of 2, our 12,000 lb hydraulic jacks ensuring strong, dependable litting capability for safe operation.

Jacks

J55 - 2 Speed Jacks

These jacks feature a 2-speed system, allowing faster setup and precise control for safely lifting and stabilizing trailers.
